BUILD YOUR FIELD OF VIEW

Three screens. One connected view.

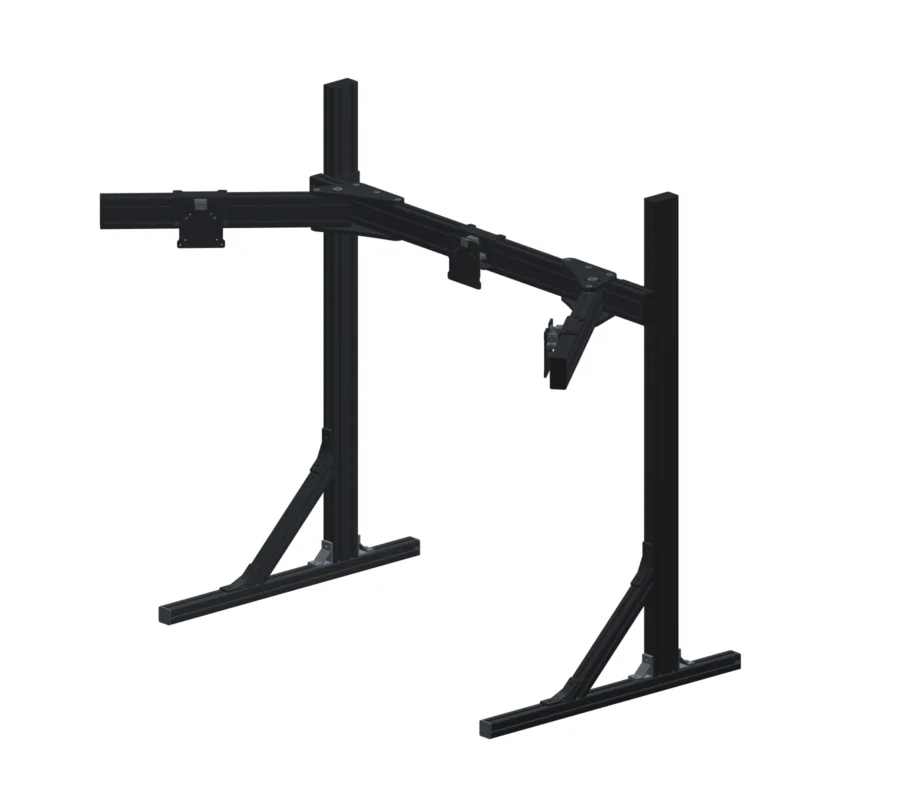

Build your view around the driving position. A central display and two angled side screens bring more of the circuit into view, with a separate floor-supported frame.

XDRacing micro-adjustment monitor mounting assembly

01 / ALIGNMENT

Fine alignment, built in.

Micro-adjustment components are included as standard. Make small positioning corrections at each mounting point as you align the three displays. Start with the centre screen, then align the side screens to suit your final viewing position.

XDRacing side-arm pivot connection plates

02 / SIDE-ARM POSITIONING

Set the angle. Shape your view.

The side-arm joints let you change the angle of the outer displays around the centre screen. Set the viewing layout before tightening the joints, then use the individual mounts for the final alignment.

XDRacing upright with diagonal brace and floor rail

03 / FREESTANDING FRAME

A frame that stands on its own.

Profile uprights connect to extended floor rails with diagonal braces. The display structure has its own floor support, separate from the cockpit. Position the stand around your available space without relying on a cockpit-mounted monitor bracket.

Compatibility & specifications

Installation	Freestanding floor mount
Display configuration	Triple monitor
Maximum screen size	32 inches per screen
VESA mounting patterns	75 × 75 mm / 100 × 100 mm
Micro-adjustment components	Included as standard
Frame layout	Profile uprights, crossbeam, side arms and diagonally braced floor rails

Check the rear mounting recess, connector access, monitor housing dimensions and weight suitability before ordering. Contact XDRacing with your exact monitor model if you need help confirming fit.

Before you build

Are the micro-adjustment components included?

Yes. Micro-adjustment components are standard equipment on this version.

Does the stand attach to the cockpit?

This is a freestanding floor-supported design. It does not require the monitor structure to be fixed to the cockpit.

Are monitors included?

This product is the monitor stand. Monitors are not included.

Need help checking your monitors? Contact XDRacing ↗
