BUILD YOUR FIELD OF VIEW
Three screens. One connected view.

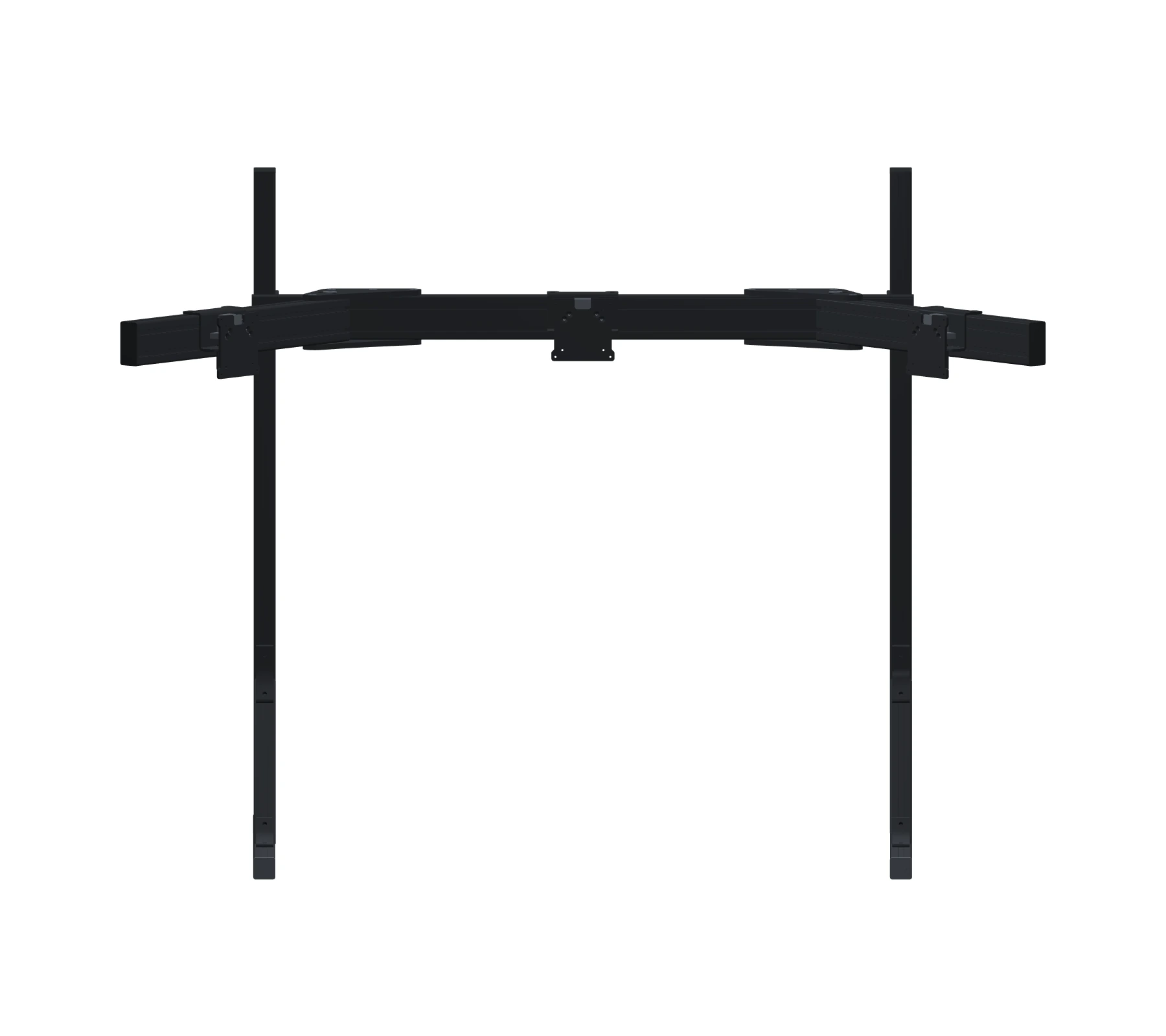

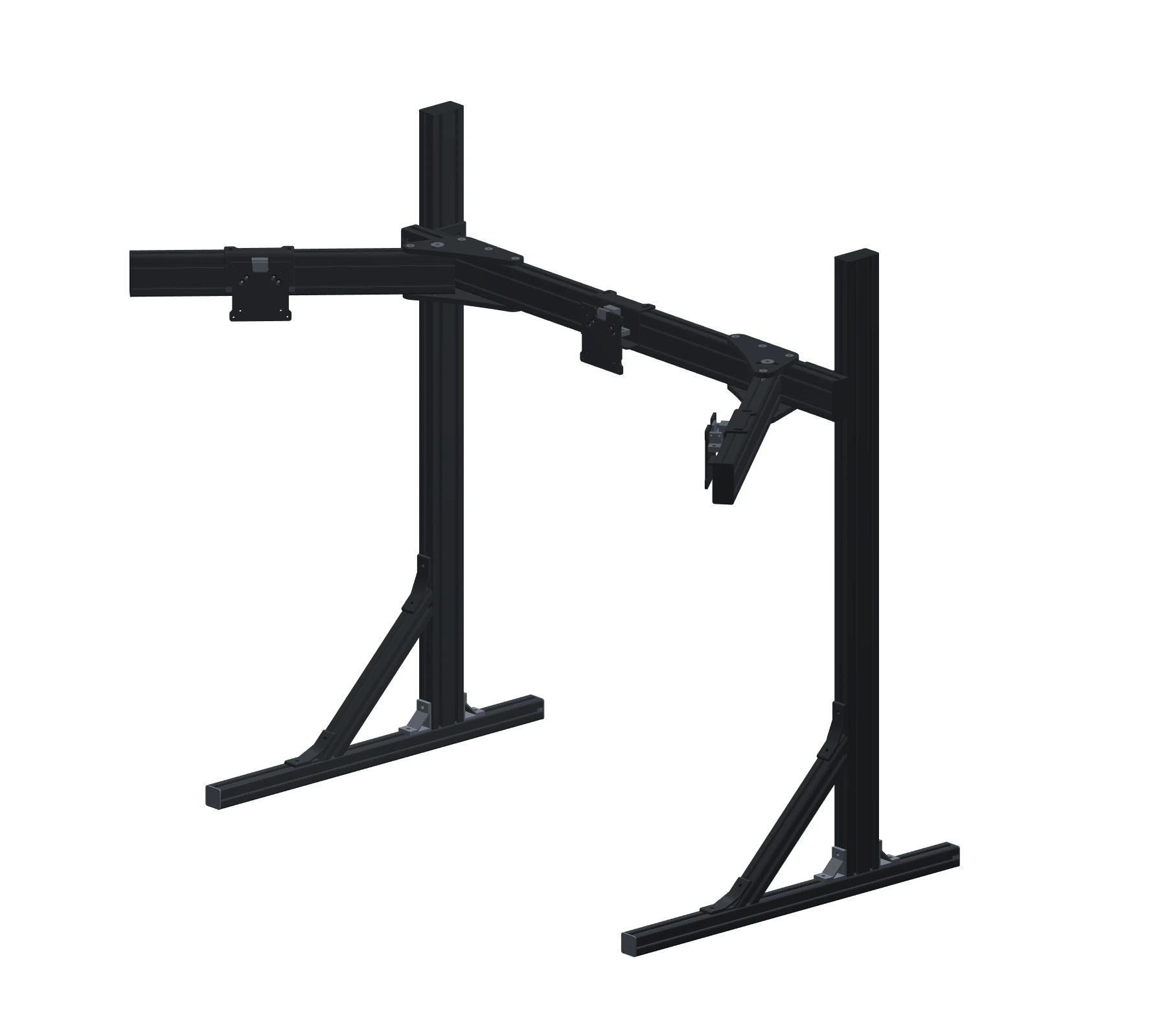

Build your view around the driving position. A central display and two angled side screens bring more of the circuit into view, with a separate floor-supported frame.
01 / ALIGNMENT
Fine alignment, built in.

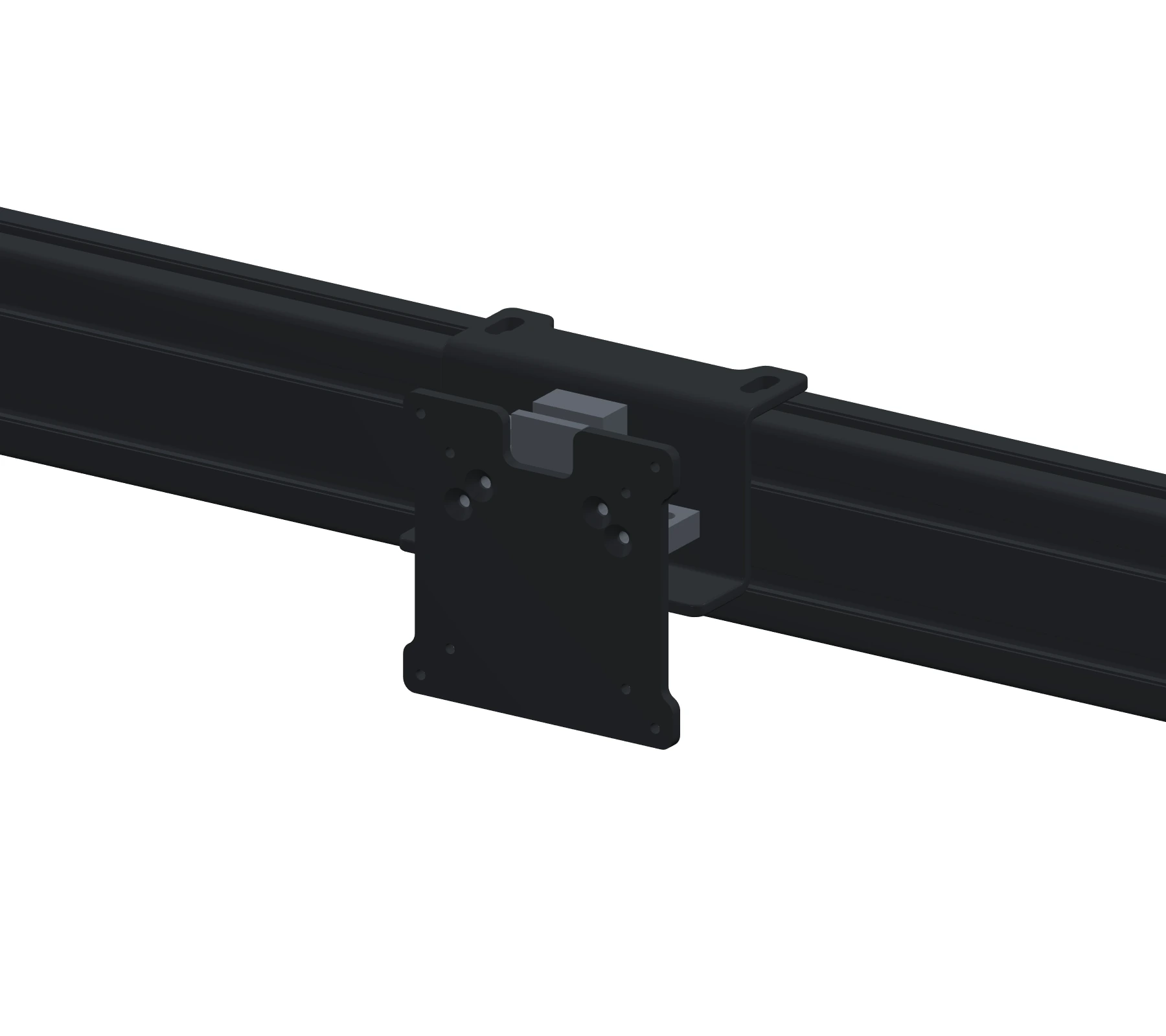

Micro-adjustment components are included as standard. Make small positioning corrections at each mounting point as you align the three displays. Start with the centre screen, then align the side screens to suit your final viewing position.
02 / SIDE-ARM POSITIONING
Set the angle. Shape your view.

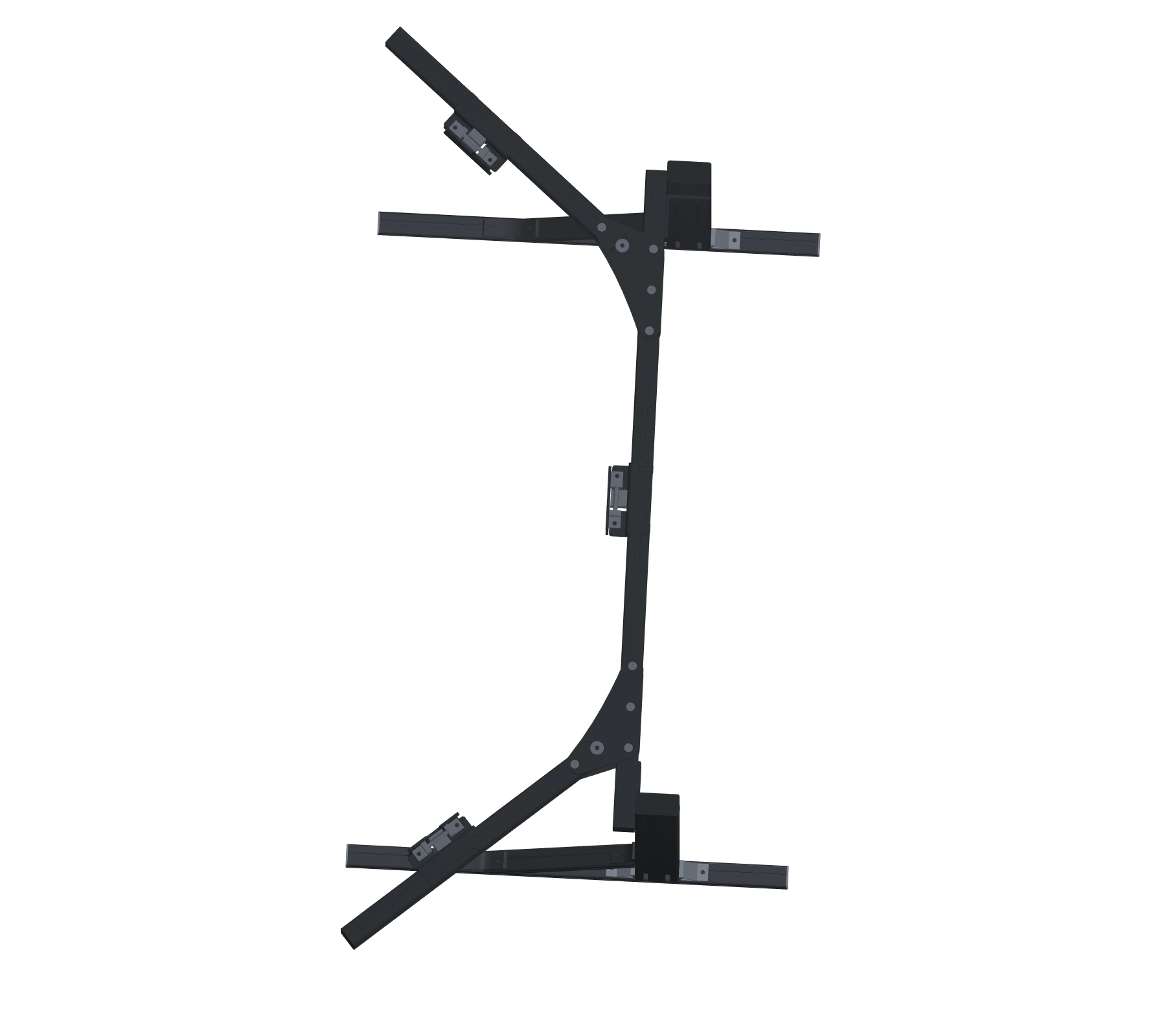

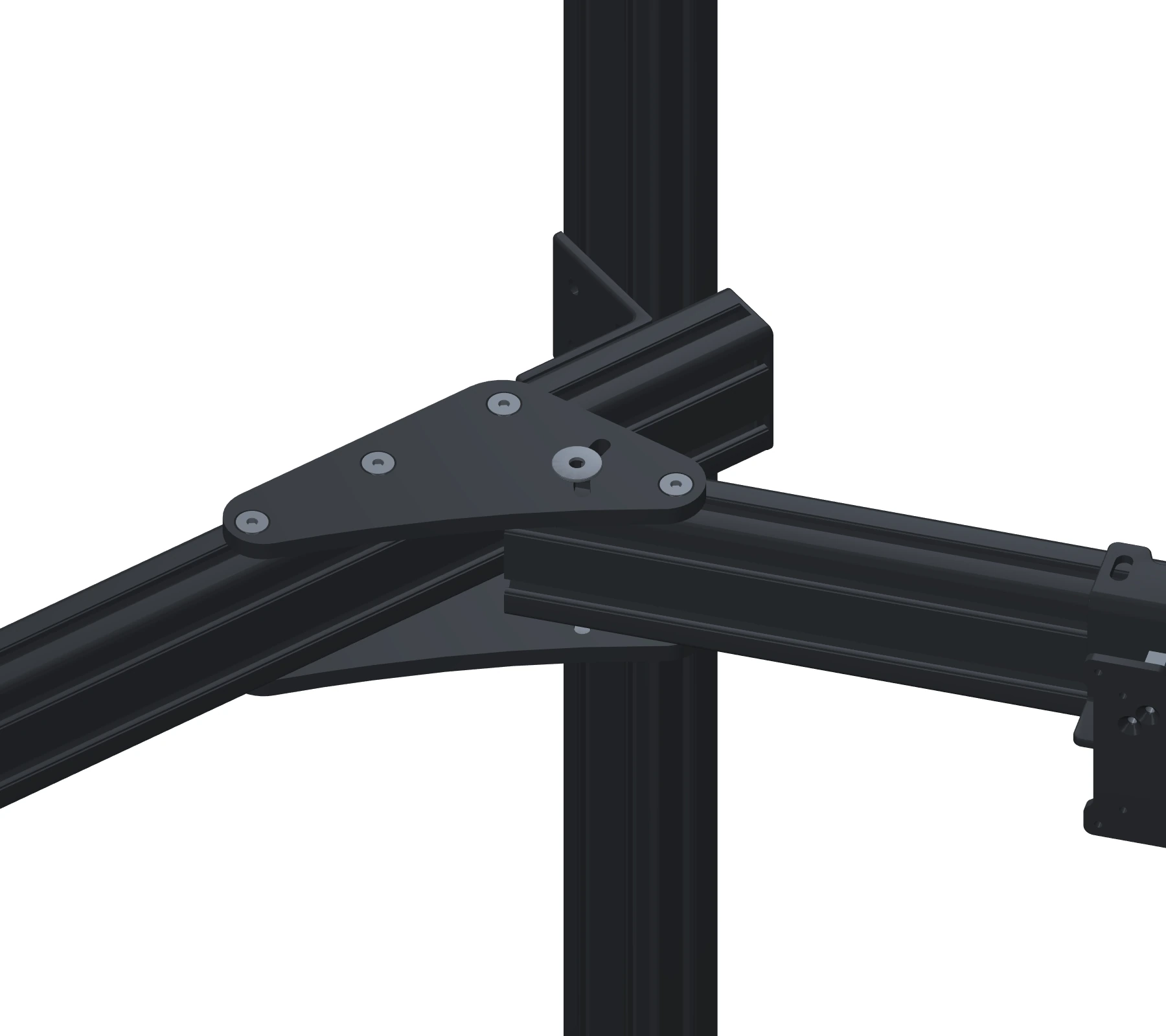

The side-arm joints let you change the angle of the outer displays around the centre screen. Set the viewing layout before tightening the joints, then use the individual mounts for the final alignment.
03 / FREESTANDING FRAME
A frame that stands on its own.

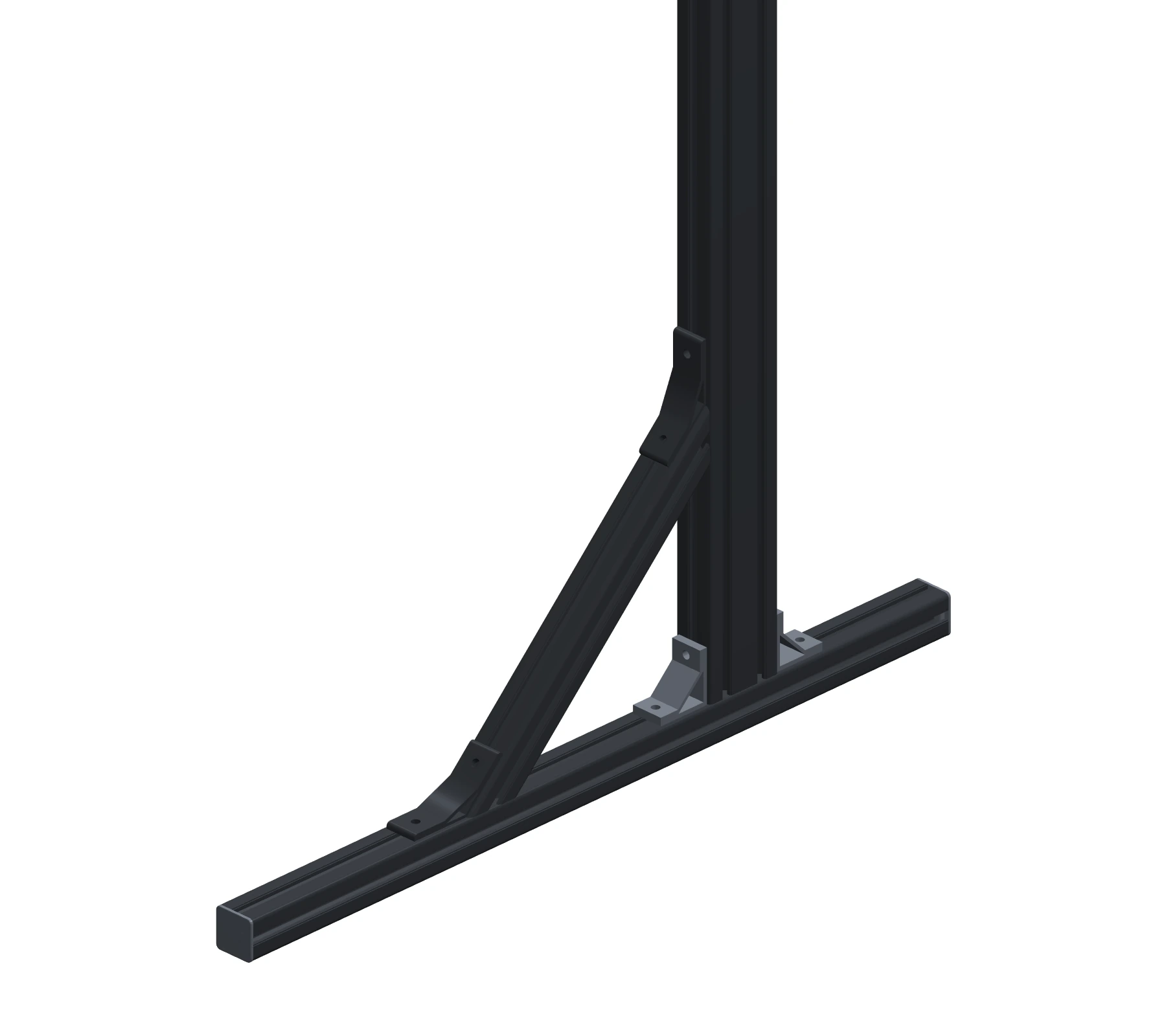

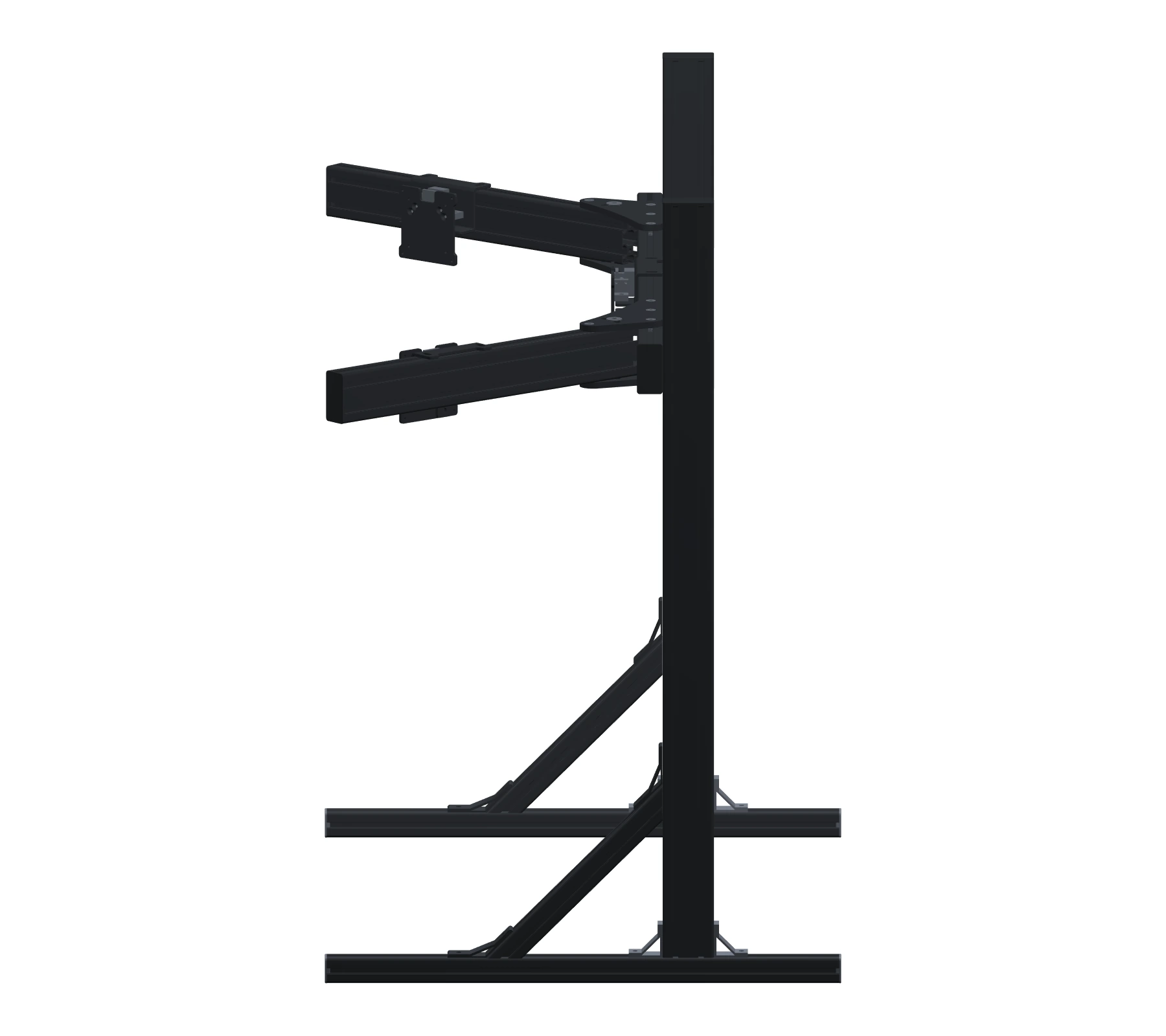

Profile uprights connect to extended floor rails with diagonal braces. The display structure has its own floor support, separate from the cockpit. Position the stand around your available space without relying on a cockpit-mounted monitor bracket.
Compatibility & specifications
| Installation | Freestanding floor mount |
|---|---|
| Display configuration | Triple monitor |
| Maximum screen size | 32 inches per screen |
| VESA mounting patterns | 75 × 75 mm / 100 × 100 mm |
| Micro-adjustment components | Included as standard |

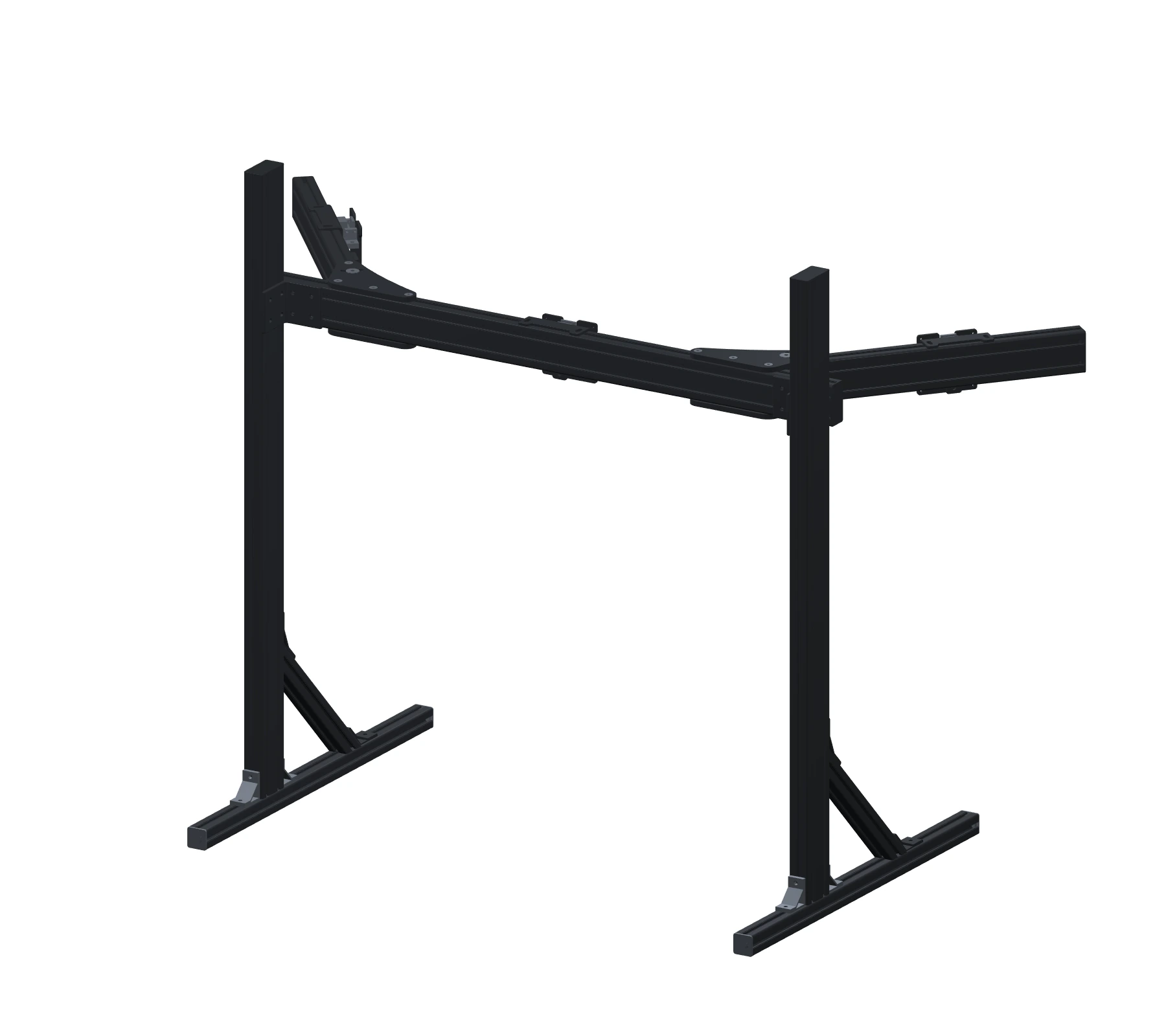

| Frame layout | Profile uprights, crossbeam, side arms and diagonally braced floor rails |
Check the rear mounting recess, connector access, monitor housing dimensions and weight suitability before ordering. Contact XDRacing with your exact monitor model if you need help confirming fit.
Before you build
Are the micro-adjustment components included?
Yes. Micro-adjustment components are standard equipment on this version.
Does the stand attach to the cockpit?
This is a freestanding floor-supported design. It does not require the monitor structure to be fixed to the cockpit.
Are monitors included?
This product is the monitor stand. Monitors are not included.
